关于CoJet系列

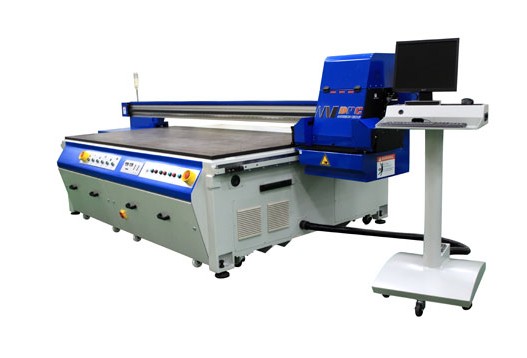

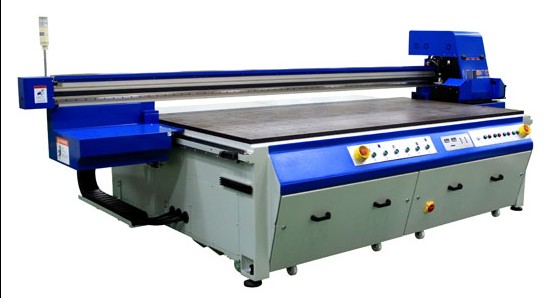

恩德集团的平台式UV数位喷绘机CoJet系列充分利用既有的CNC平台技术之优势和UV固化墨水的应用技术，搭配高达1440dpi 之解析度，可喷绘出彩色、白色和半透明效果之图样。色彩鲜艳的数位影像皆可喷绘于 MDF、木板、塑材、塑铝板和磁砖等等，而后制光油运用可呈现平滑表面和不同光泽之保护涂层。另外，平板式UV数位喷绘机配附的RIP软件可支持所有主要绘图文件格式。

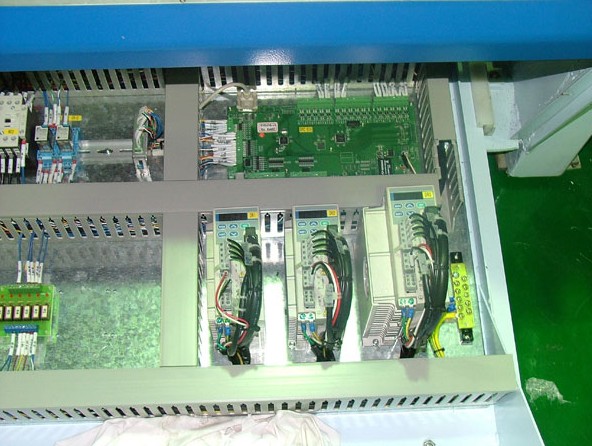

- 宽幅双伺服同步驱动控制设计，达成工业等级高精度喷点位置控制，喷印过程中材料静置不动，喷印车进 行X-Y轴移动，材料不移动可重复喷印不产生偏位
- 选用德国BECK真空邦浦的分区式强力真空吸附台面，确保被印物平整地贴附台面上

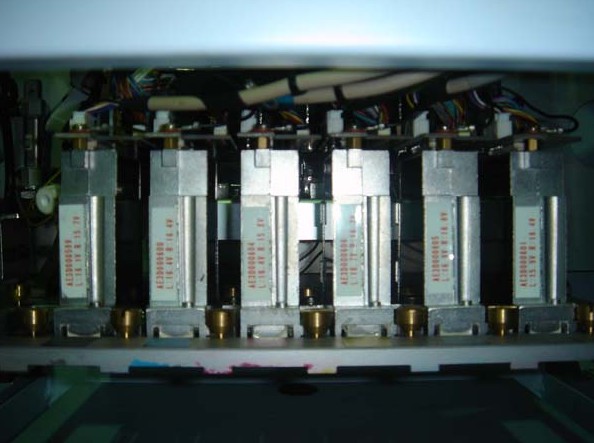

- 彩色与白色错开两列的特殊喷头排列提供彩色-白色和白色-彩色同时喷印功能，速度与彩色喷印一样不减 半
- 最重可喷印500公斤材料，喷绘素材之高度可达100mm
- 掉点断孔补偿功能可有效延长喷墨头使用寿命
- 特殊的重印补救功能可降低非预警停机的喷印损失

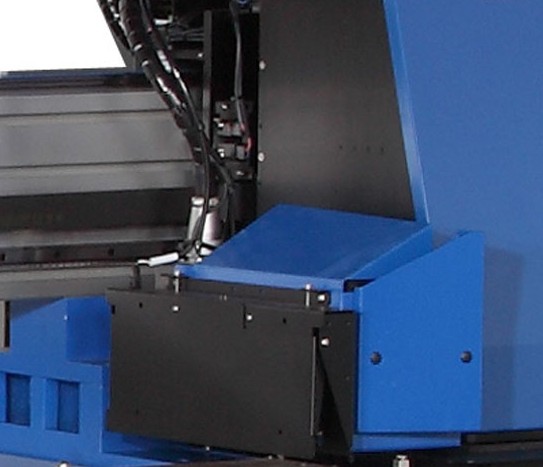

- 自动化喷头维护系统使喷头保持最佳喷印状态
- 自动供墨系统及多段式墨水存量显示警告系统维持设备长期连续喷印能力
- 白墨循环系统可预防白墨阻塞喷嘴或墨管
技术规范
| Basic configuration | CoJet | CoJet Plus |
|---|---|---|
| Print Heads |
Konica Minolta 512 nozzles (4 heads, up to 10 heads optional) |
Konica Minolta 1024 nozzles (7color 8 heads) |
| Drop Volume | 14pl | 14 picoliter |
| Print Color | C, M, Y, K, Lc, Lm, White Ink, (top coat ink optional) | C, M, Y, K, Lc, Lm, White Ink, (top coat ink optional) |
| Print Resolution (dpi) |
720 x 720 1440 x 720 |
720 x 720 1440 x 720 |
| Print Speed, m2/hr (ft2/hr) |
6/7 colors 4 colors 6/7 color 4 color |
7/8 colors 25 (269) 4 colors 25 (269) 7/8 color 12 (129) 4 color 12 (129) |
| Up to m2/hr (ft2/hr) |
14.1 (150) 28.2 (301) 7.1 (75) 14.2 (150) |
25 (269) 25 (269) 12 (129) 12 (129) |
| Print Area | 2350 mm x 1250 mm (96 inch x 48 inch) | 2350 mm x 1250 mm (96 inch x 48 inch) |
| Max. Thickness | 100mm (3.94 inch) | 100mm (3.94 inch) |
| Ink Type | UV Curable ink | UV Curable ink |
| Media Handling | Flatbed moving gantry, Vacuum | Flatbed moving gantry, Vacuum |
| Media Type | Foam Board, Acrylic sheet, Glass, Wood, Aluminium, Tile, etc. | Foam Board, Acrylic sheet, Glass, Wood, Aluminium, Tile, etc. |
| Interface | Ethernet 10/100 Base T | Ethernet 10/100 Base T |
| RIP application | As RIP support | Onyx Production House (included) |
| Dimension | 4600 mm x 3750 mm x 2000 mm |
4600 mm x 3750 mm x 2000 mm |
| Weight | 2500 Kg | 2500 Kg |
| Package List | CoJet - 2612s Printer system, Maintenance Tools, Power Cable, ink, Vacuum Pump, Communication Cable, Operation Manual |
CoJet - 2612s Printer system, Maintenance Tools, Power Cable, complete set of inks, Vacuum Pump, Communication Cable, Flush line, overflow tank, Operation Manual, all included |
| Operation Environment | Temperature: 15-30° C (59-86° F), Humidity: 30-70% RH |
Temperature: 15-30° C (59-86° F), Humidity: 30-70% RH |
| Power Requirement | 200-240 VAC, 50/60 Hz, 32A, 3 Phase |
200-240 VAC, 50/60 Hz, 32A, 3 Phase |
| Air Source | 5kg/cm, 30 L/min, Clean Dry Air | 5kg/cm, 30 L/min, Clean Dry Air |
| Warranty | Printer: 1 Year, Print Head: 6 months | Printer: 1 Year, Print Head: 6 months |
