关于AKut切割系统系列

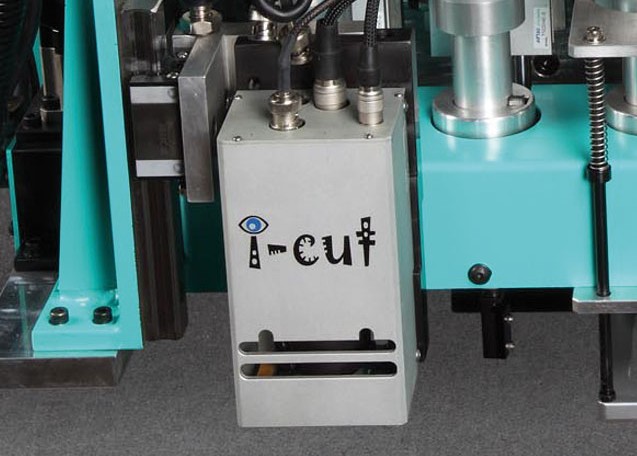

Akut是一台整合router、震动刀、切刀以及压轮等多种刀具组合的多功能CNC加工机，能满足广告业多样化材料的加工成型需求。此外，Akut也整合i-Cut CCD视觉系统，对于喷印后切割对位的问题提供最佳的解决方案。
- Akut提供完美的加工品质，配有11 HP (8.1 KW)的高速水冷式router，主轴转数高达40,000，且备有8把自动换刀功能
- Akut标准标准备备含10 HP BECKER的真空泵浦，时速高达250 cbm/时。其工作台面结合泵浦使Akut能吸附各种面积的工件并安全地进行加工制程

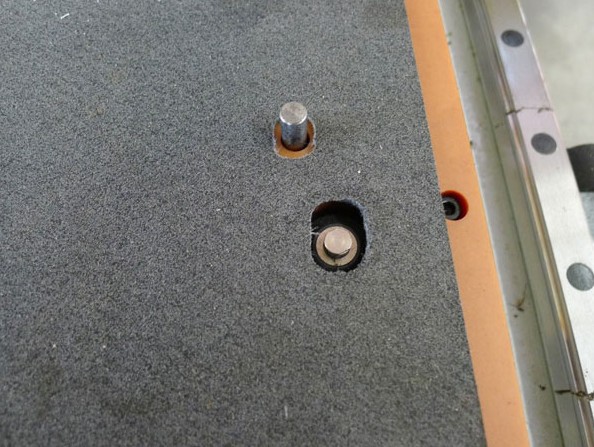

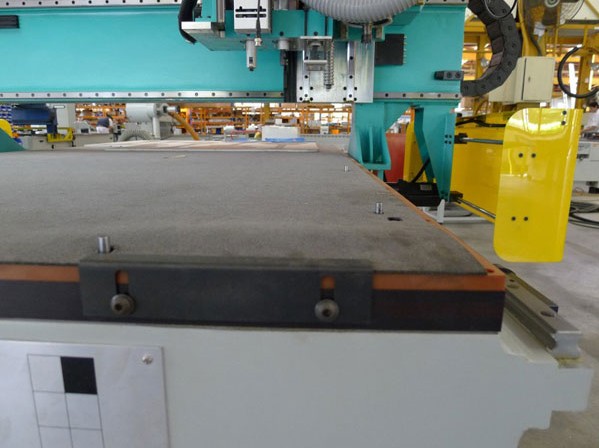

- 强壮的工作台面和龙门结构使Akut可轻易对位工件和清洁工作台面
- Akut备有刀长量测系统(Tool Touch-off Device)，使其刀具长度校准更加精确
技术规范
| Basic configuration | AKut |
|---|---|
| X Axis | 2750 mm (9.8 ft) |
| Y Axis | 1600 mm (5.2 ft) |
| Z Axis | 200 mm (0.65 ft) |
| Table Size | 2500 x 1300 mm (8.2 x 4.2 ft) |
| X Axis | 50 M/min (161 ft/min) |
| Y Axis | 50 M/min (161 ft/min) |
| Z Axis | 10 M/min (32.2 ft/min) |
| No. of Spindles | 1 |
| Tool Holder Shank | ANDI HSK32E, water cooled |
| Speed | 8.1 kw, 1,000 - 40,000 rpm |
| Oscillating Cutting No. 2 | 1 with 0.15 kw motor power, Stroke: 0.3 mm |
| Kiss Cutting No. 3 | 1 (can be replaced to a V-cut device) |
| Creasing Tool No. 4 | 1 Crease wheel with 32 mm diameter |
| CCD | i-Cut |
| Tool Dia For Router Bit (O.D.) | Max. Ø13 mm (Ø 0.512 inch) |
| Power Requirements | 220 V, 60 Hz, 50 A, 3 P |
| ATC Head | 8.1 kw x 1 (10.8 hp) |
| Oscillating Cutting | 0.15 kw x 1 (0.2 hp) |
| Vacuum Pump 250 cbm/hr | 1 Blower with 5 hp (3.75 kw) |
| Air Pressure | 6 kg/cm2 (85 lb/in2) |

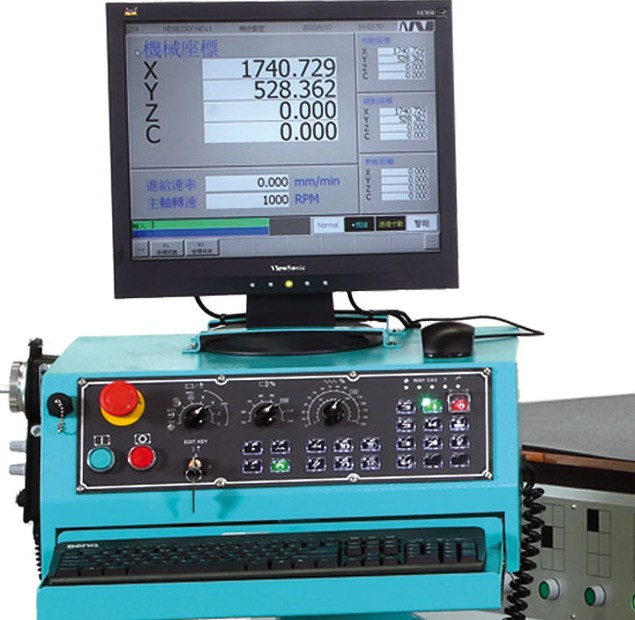

| NC Controller | ANDI-SYNTEC PC based Controller |
| Floor Area | 6000 x 3750 mm (19.685 x 12.303 ft) |
| Height | 2200 mm (7.218 ft) |
| Weight | 2500 kg (5511.48 lb) |
| Air Consumption | 450 L/min (15.9 cfm) |
| Suction Capacity for Main Spindle | 1495 m3/hr (880 cfm) |
| Total connected Load | 22 kw/64 - 34 - 27 A |
